Nippon Ball Valve｜102F-HN/LB

Ultra-High-Pressure / Ultra-High-Temperature 2-way ON/OFF Ball Valves

102F-HN/LB

Metal Touch
2-way Ball Valves
Heat Resistant
High-Pressure

This valve has been tested at approximately 800 ºC for the ultrahigh temperature range and up to CL 2500 for the high pressure type.
As the structure and materials need to be selected according to the fluids involved or intended use, please contact NBV for further details.
We have considerable production experience involving high temperature gas, high pressure gas, high pressure polymer, etc.

Product Catalog Delivery records

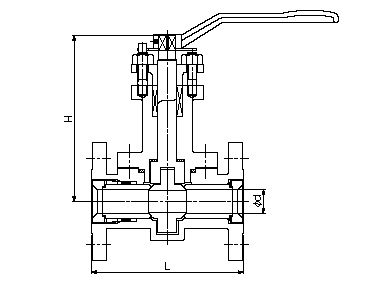

Dimensional drawings

Nominal diameter		φd		L			H
		10K、 20K	CL150、 CL300	10K、 CL150	20K	CL300	10K、 20K	CL150、 CL300
15A	1/2B	15	8	120			142	138
20A	3/4B	20	12	140			156	140
25A	1B	25	15	160			175	142
40A	1·1/2B	33		190			211
50A	2B	43		200	216		221
65A	2·1/2B	60		220	241	270	241
80A	3B	70		240	283		273
100A	4B	90		290	356		335
125A	5B	110		360	381	400	377
150A	6B	130		410	445		462
200A	8B	170		500	559		507

Usage range

Ultra-High-Pressure / Ultra-High-Temperature 2-way ON/OFF Ball Valves
Body materials: coal-steel cast steel, stainless cast steel, high alloy steel etc.
Operating temperature: below 800°C

Manufacturing range

15A-500A
Please contact us about the manufacturing range as it varies by rating.

Usage result

High-pressure gas equipment, polymerization equipment, synthetic fiber manufacturing equipment, coal gasification equipment, biomass equipment, etc.
We have considerable experience involving high-temperature gas, high-pressure gas, high-pressure polymers, etc.
