ON-OFF用二通球阀

M202F-S

金属硬密封
二通阀

法兰间距等和球阀的规格一致，具有互换性。
和102F不同之处在于没有碟簧的弹力调整功能。
适用于一般的粉体･气体等介质。双向密封。

产品目录供货业绩

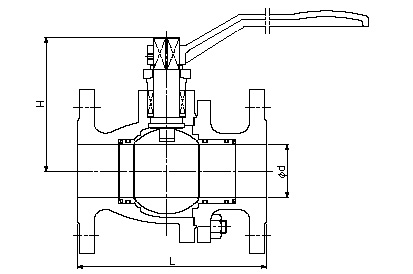

尺寸图

口径 Nominal diameter		φd	L		H
口径 Nominal diameter		10K、CL150、 CL300	10K、 CL150	CL300	10K、CL150、 CL300
15A	1/2B	15	108	140	73
20A	3/4B	20	118	152	75
25A	1B	25	127	165	85
40A	1·1/2B	40	165	190	120
50A	2B	75	178	216	126
65A	2·1/2B	65	190	241	163
80A	3B	75	203	283	170
100A	4B	90	229	305	200

使用范围

ON-OFF阀，双向密封型
阀体材质：铸铁、碳钢铸钢、不锈钢铸钢等
使用温度：200℃以下

制作范围

15Ａ～150Ａ
根据等级要求制作范围有所不同，敬请垂询。

用途业绩

粉体输送、水处理设备、合成纤维制造设备等
