三通切换阀

103F

金属硬密封
分路阀

用于切换介质流通路径的阀门。
可以选择T型通道或L型通道。
适用于软密封很难对应的高粘性介质和高压介质以及一般的气体･粉体･聚合物･浆体等。

产品目录供货业绩

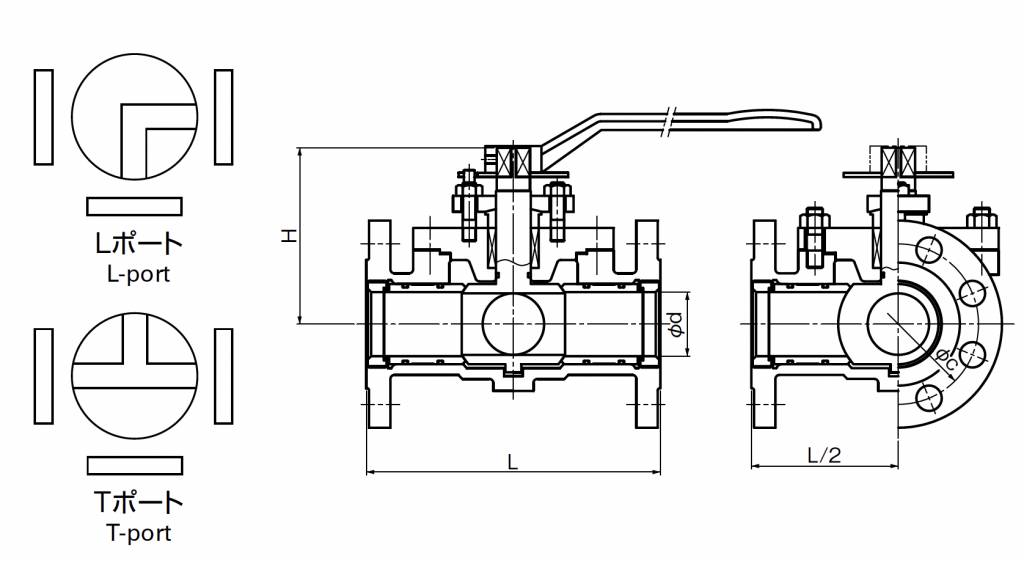

尺寸图

口径 Nominal diameter		φd		L			H
口径 Nominal diameter		10K、 20K	CL150、 CL300	10K、 CL150	20K	CL300	10K、20K、 CL150	CL300
15A	1/2B	15	10	140	140	140	85
20A	3/4B	20	16	150	150	170	95
25A	1B	25		180	180	180	105
40A	1·1/2B	38		200	210/230	230	125
50A	2B	48		220	220	260	132	142
65A	2·1/2B	65		240	260		152
80A	3B	73		290	290/300	320	162
100A	4B	90		360	360	360	200
125A	5B	110		410	410		250
150A	6B	130		500	500	500	300
200A	8B	170		620	620		350

使用范围

切换阀
阀体材质：铸铁、碳钢铸钢、不锈钢铸钢等
使用温度：200℃以下

制作范围

15Ａ～400Ａ

用途业绩

气体、排气用；粉体输送；纸浆输送设备；道路施工设备等
